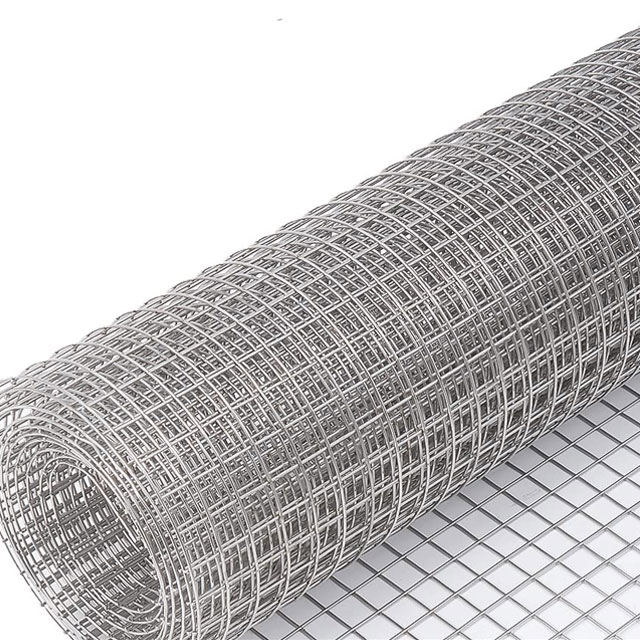

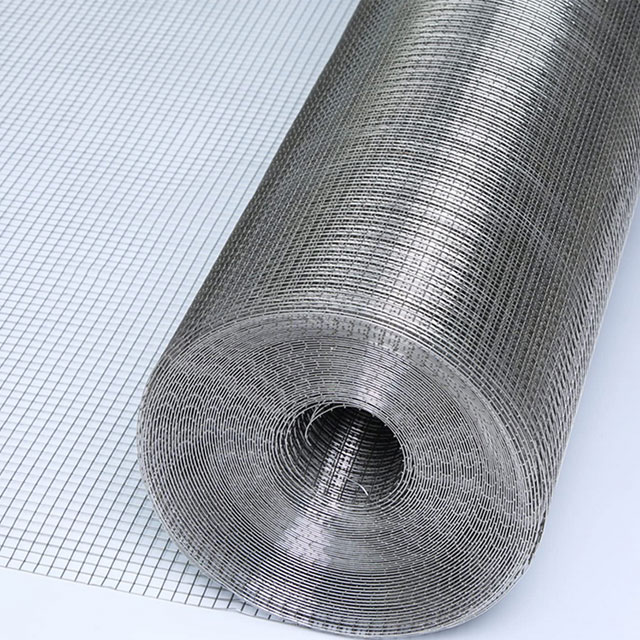

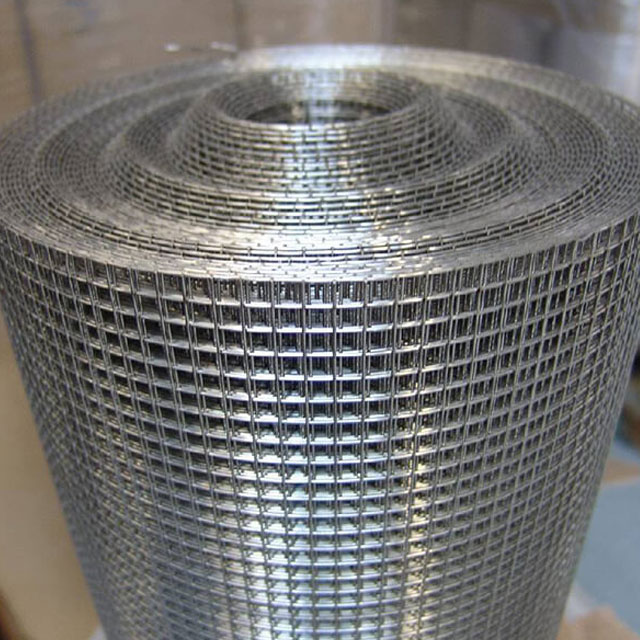

Stainless Steel Welded Wire Mesh

Stainless steel welded wire mesh is a type of wire mesh that is made by welding stainless steel wires together at their intersections. This creates a strong and durable mesh that is ideal for a wide range of applications, including fencing, security screens, and industrial filtration.

Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30 m in metric, customization available
Packing: inner kraft paper, outside plastic cloth
Use: window and screen door guards, industrial machine guards, sand screens, etc.
Delivery Time: 5 days for stock material
Material: SS 201, 202, 304, 304L, 316, 316L, 321, 430, etc.

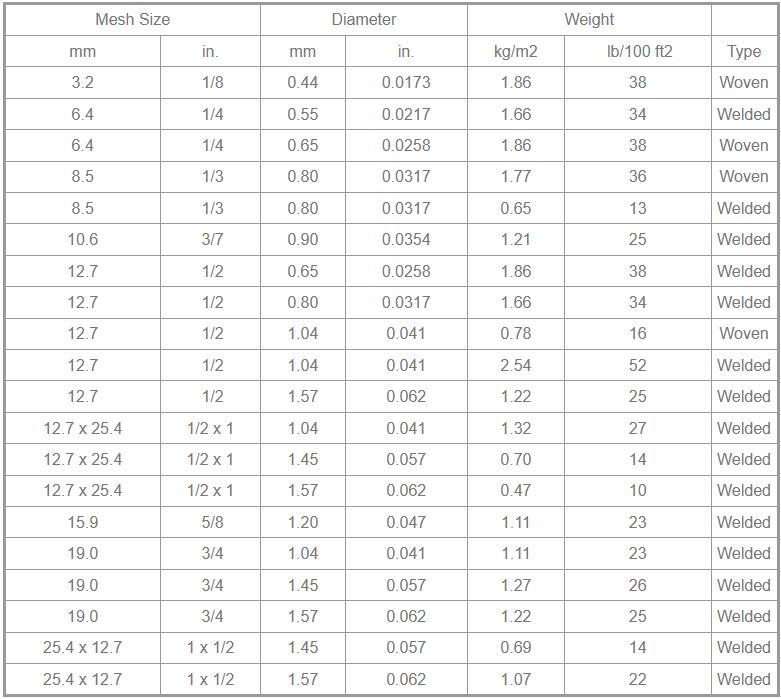

Mesh size: 6.4-25.4 mm (1/4-1 in.)
Diameter: 0.55-1.57 mm (0.0217-0.062 in.)
Standard width/roll: 3 ft (36 in.), or 1 m in metric, customization available
Standard length/roll: 100 ft (1,200 in.), or 30 m in metric, customization available
Packing: inner kraft paper, outside plastic cloth
Use: window and screen door guards, industrial machine guards, sand screens, etc.
Delivery Time: 5 days for stock material

Material:	SS201 201 304 304L 316 316L 321 430 other
Mesh size:	6.4-25.4 mm (1/4-1 in.)
Diameter:	0.55-1.57 mm (0.0217-0.062 in.)
Availability:

Quantity:



Inquire Add to Basket

Stainless steel welded wire mesh is available in a range of wire gauges and mesh sizes, making it suitable for different applications. It is also available in different grades of stainless steel, including 304, 316, and 316L, which offer varying levels of corrosion resistance and strength.
